plastic balers - Techonology for Solid Waste Recycling - Shear Balers - Imabe of America

  • Plastic Balers

    PLASTICS BALINGPRESS / PLASTICS BALER

    IMABE manufacturers balers that are specifically designed to processall of thevarious types of plastics, such as: film plastics, ridgidplastics, PET, HDPE, LDPE, etc. These balers process the plastics into dense heavy bales designed to minimize handling and maximize transportation savings.

    PET BALING PRESS / PET BALER

    IMABE Automatic Horizontal balers provide efficient heavy compaction of PET plastic waste, from both pre-consumer and post consumer waste streams producing excellent bale quality.

    IMABE manufacturers PET perforators that can be intergrated into the process to ensure maximum pressure is achieved on all plastic bottles.

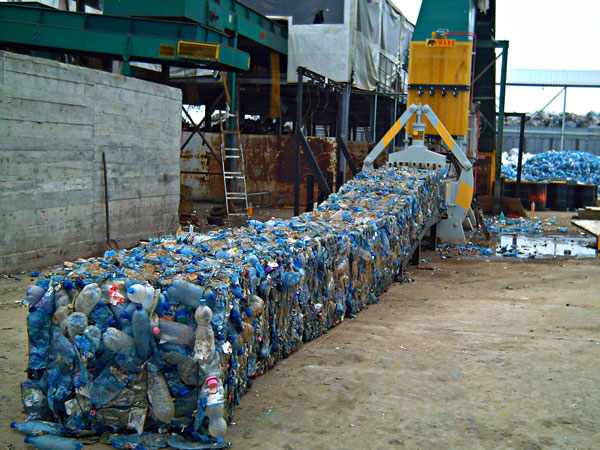

    • H-50/1000-PET

      Characteristics:

      Maximum compression force
      88 T
      Main motors power
      37 kW / 50 HP
      Production
      < 2 T/h
      Bale section
      39.4" x 31.5"
      Feeding opening (L x W)
      63" x 39.4"

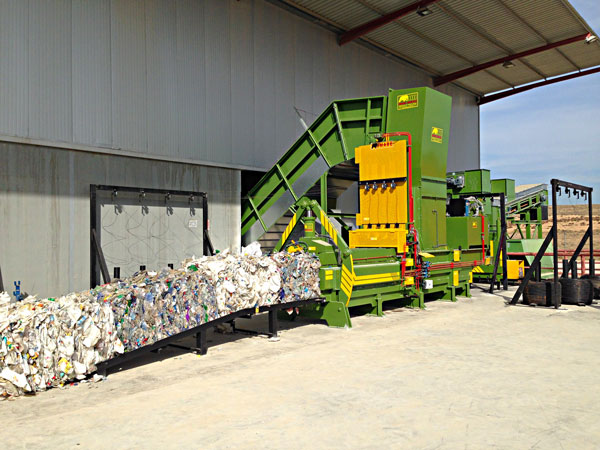

    • H-75/1100-PET

      Characteristics:

      Maximum compression force
      132 T
      Main motors power
      55 kW / 75 HP
      Production
      < 7 T/h
      Bale section
      39.4" x 28.7"
      Feeding opening (L x W)
      63" x 43.3"

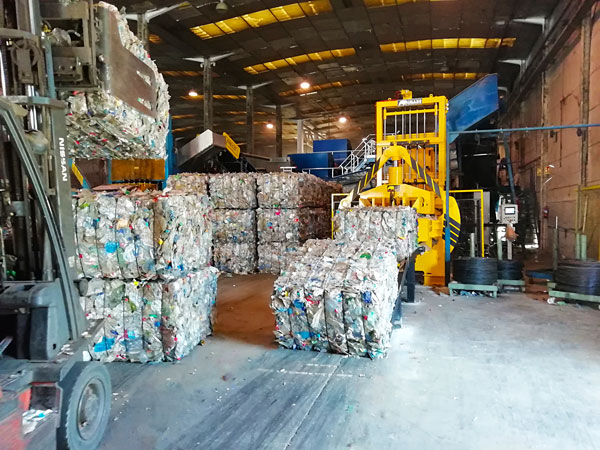

    • H-100/1100-PET

      Characteristics:

      Maximum compression force
      132 T
      Main motors power
      75 kW / 100 HP
      Production
      < 7 T/h
      Bale section
      39.4" x 28.7"
      Feeding opening (L x W)
      71" x 43.3"

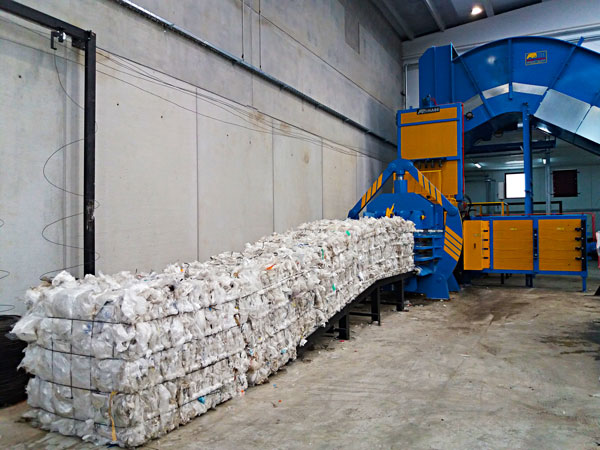

    • H-120/2000-PET

      Characteristics:

      Maximum compression force
      132 T
      Main motors power
      2 x 45 kW / 2 x 60 HP
      Production
      < 10 T/h
      Bale section
      43.3" x 33.5"
      Feeding opening (L x W)
      6ft 7" x 43.3"

Page 2 of 2
