OCC & Paper Balers

CARDBOARD - OCC BALING PRESS / CARDBOARD – OCC / BALER

IMABE Balers are known world wide for dependable high quality, high production baling of OCC (cardboard containers). Our balers include an innovative and efficient Stamper, this feature assist to keep bulky material flowing from the Hopper into the compaction chamber, reducing Hopper jams, increases production rates and reduces wearon the cutting blades and baler structure.

AUTOMATIC HORIZONTAL BALERS.

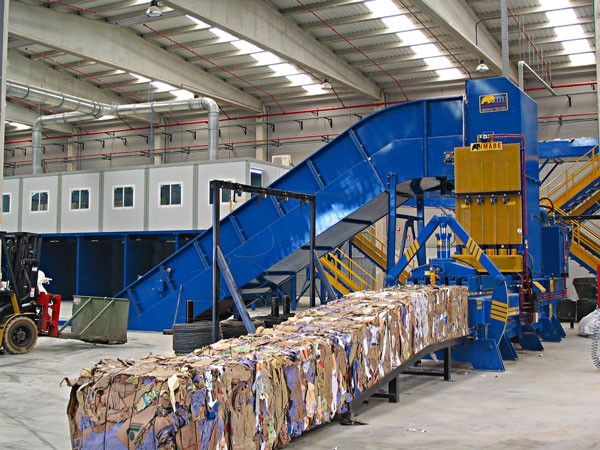

  • H-60/1000

    Characteristics:

    Maximum compression force
    88 T
    Main motors power
    45 kW / 60 HP
    Production
    < 12 T/h
    Bale section
    39.4" x 31.5"
    Feeding opening (L x W)
    63" x 39.4"

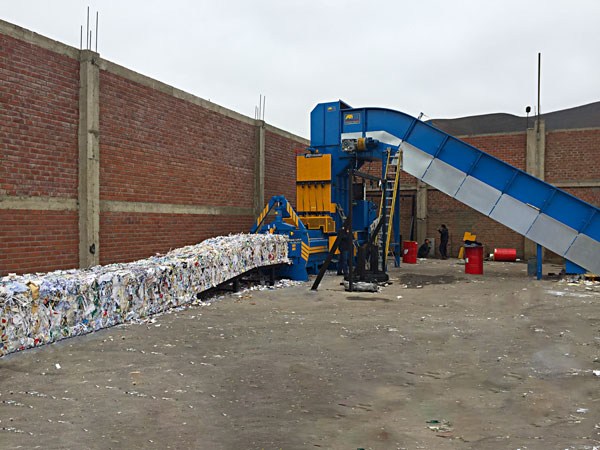

  • H-75/1000

    Characteristics:

    Maximum compression force
    99 T
    Main motors power
    55 kW / 75 HP
    Production
    < 14 T/h
    Bale section
    39.4" x 31.5"
    Feeding opening (L x W)
    71" x 39.4"

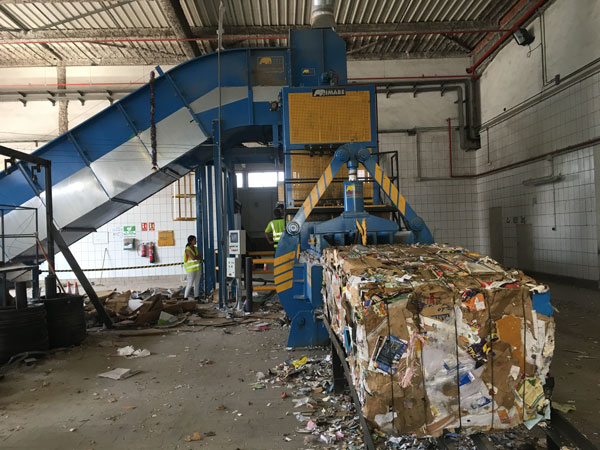

  • H-120/2000

    Characteristics:

    Maximum compression force
    110 T
    Main motors power
    2 x 44 kW / 2 x 60 HP
    Production
    < 20 T/h
    Bale section
    43.3" x 33.5"
    Feeding opening (L x W)
    6ft 7" x 43.3"

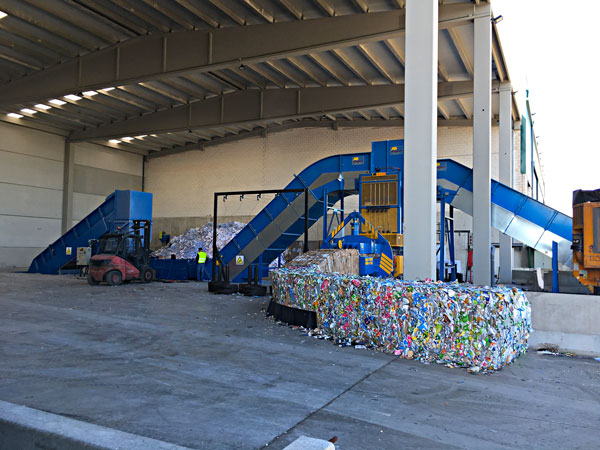

  • H-150/3000

    Characteristics:

    Maximum compression force
    132 T
    Main motors power
    2 x 55 kW / 2 x 75 HP
    Production
    < 30 T/h
    Bale section
    43.3" x 43.3"
    Feeding opening (L x W)
    6ft 7" x 43.3"

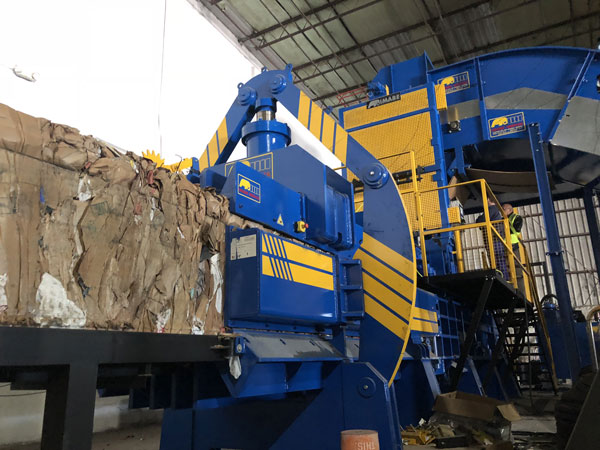

  • H-200/3000

    Characteristics:

    Maximum compression force
    132 T
    Main motors power
    2 x 75 kW / 2 x 100 HP
    Production
    < 32 T/h
    Bale section
    43.3" x 43.3"
    Feeding opening (L x W)
    6ft 7" x 43.3"

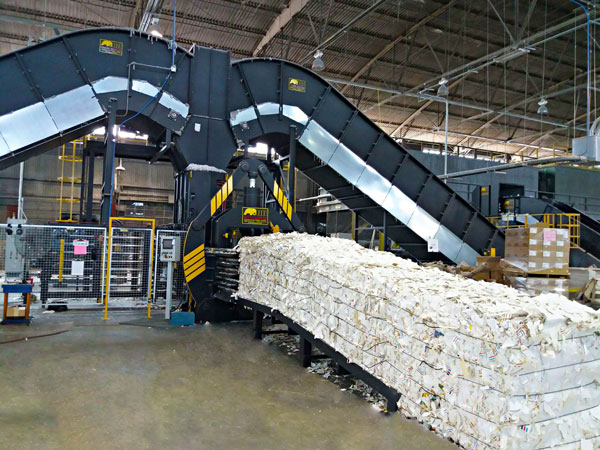

  • H-240/3000

    Characteristics:

    Maximum compression force
    169 T
    Main motors power
    3 x 55 kW / 3 x 75 HP
    Production
    < 36 T/h
    Bale section
    43.3" x 43.3"
    Feeding opening (L x W)
    6ft 7" x 43.3"

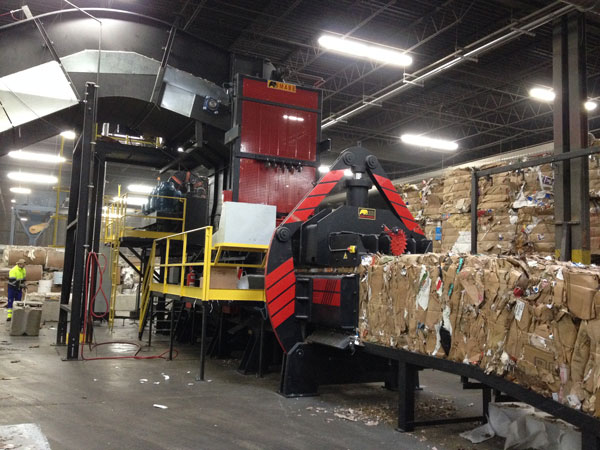

  • H-300/3000

    Characteristics:

    Maximum compression force
    169 T
    Main motors power
    3 x 75 kW / 3 x 100 HP
    Production
    < 40 T/h
    Bale section
    43.3" x 43.3"
    Feeding opening (L x W)
    7ft 3" x 43.3"
