HOGGERS

HOGGERS

IMABE offers different types of hoggers to reduce the volume of paper and cardboard items and thus facilitate their subsequent pressing and treatment.

These are single-shaft hoggers rotate at high speed and are more suitable for a higher production.

They are ideal to be used together with IMABE's automatic horizontal balers.

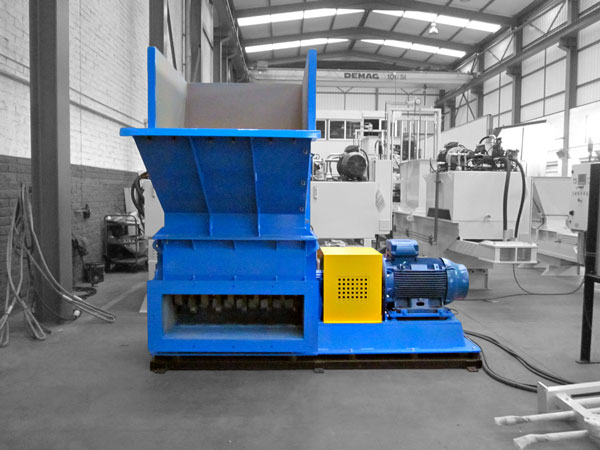

  • TR-1200 75 HP

    Characteristics:

    Cutting disc diameter
    24"
    Width of blade
    1.57"
    Number of blades
    10
    Drum rotation speed
    1.500 rpm
    Main engines
    55 kW / 75 HP
    Production
    < 8 T/h
    Cutting surface
    47" x 39"
  • TR-1200 100 HP

    Characteristics:

    Cutting disc diameter
    24"
    Width of blade
    1.57"
    Number of blades
    10
    Drum rotation speed
    1.500 rpm
    Main engines
    75 kW / 100 HP
    Production
    < 10 T/h
    Cutting surface
    47" x 39"

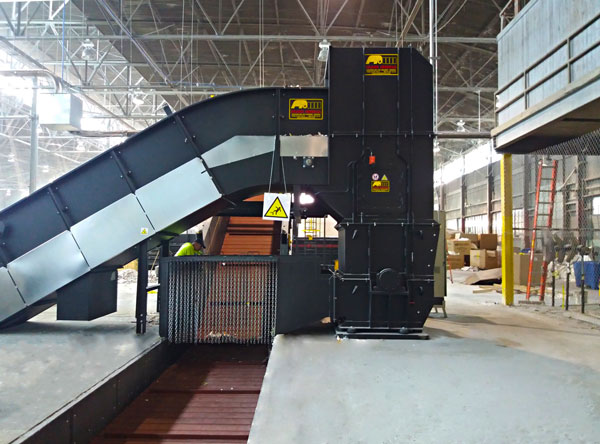

  • TR-1500 75 HP

    Characteristics:

    Cutting disc diameter
    38"
    Width of blade
    1.57"
    Number of blades
    14
    Drum rotation speed
    1.500 rpm
    Main engines
    55 kW / 75 HP
    Production
    < 16 T/h
    Cutting surface
    59" x 51"
  • TR-1500 125 HP

    Characteristics:

    Cutting disc diameter
    38"
    Width of blade
    1.57"
    Number of blades
    14
    Drum rotation speed
    1.500 rpm
    Main engines
    90 kW / 125 HP
    Production
    < 20 T/h
    Cutting surface
    59" x 51"
  • TR-1500 150 HP

    Characteristics:

    Cutting disc diameter
    38"
    Width of blade
    1.57"
    Number of blades
    14
    Drum rotation speed
    1.500 rpm
    Main engines
    110 kW / 150 HP
    Production
    < 22 T/h
    Cutting surface
    59" x 51"

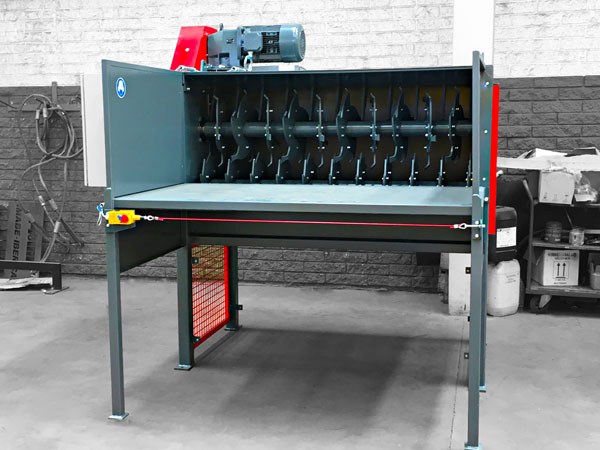

  • TR-1800 SHEETS

    Characteristics:

    Cutting disc diameter
    -
    Width of blade
    1.1"
    Number of blades
    21
    Drum rotation speed
    32 rpm
    Main engines
    5,5 kW/ 7,5 HP
    Production
    < 1,5T/h
    Cutting surface
    55"
